German Mills Settlers Park Sanitary Infrastructure Protection Project

Toronto and Region Conservation Authority (TRCA) has proposed to undertake infrastructure protection works within German Mills Settlers Park in order to provide long-term protection to at-risk sanitary sewer infrastructure.

Project Location

The German Mills Settlers Park Sanitary Protection Project is located along an estimated 260 metre stretch of German Mills Creek, located within the Don River watershed. The project area is within municipally owned property known as German Mills Settlers Park, situated west of Don Mills Road between John Street and Steeles Avenue East, in the City of Markham. A public trail and a York Region 750 mm diameter sanitary line run parallel to the east bank of the watercourse from John Street to the southern limits of the park. Within certain locations of the proposed project area, the sanitary line crosses the watercourse as shown in Figure 1 below.

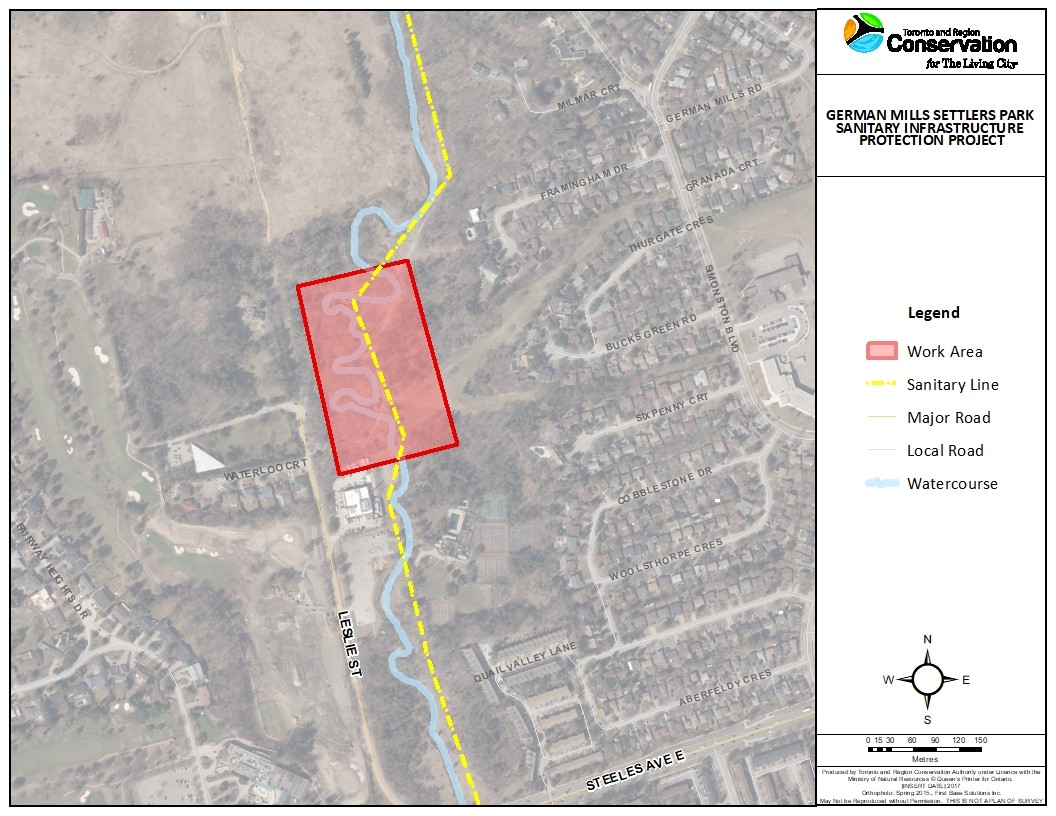

Figure 1. Project location mapping with work area highlighted in by red polygon. TRCA, 2018.
Learn More About This Project

Project Background

In 2011, TRCA developed the Infrastructure Hazard Monitoring Program (IHMP). The purpose of the IHMP is to ensure timely identification of risk to infrastructure due to watercourse activity (i.e. channel migration, widening, etc.) and efficient prioritization and mitigation of such risks in collaboration with stakeholders. The IHMP broadly divides watercourse erosion risks into two types of sites: intersection sites to assess the risk of bed erosion where the sewer crosses a watercourse, and proximity sites to assess the risk of bank erosion and lateral channel adjustments in close vicinity to the infrastructure. Intersection sites are categorized using an “I-” identifier, while proximity sites are categorized using a “P-” identifier.

The 750 mm diameter sanitary main was installed within German Mills Settlers Park in 1970. Over the past 49 years, German Mills Creek has naturally migrated within the flood plain and has shifted over or in close proximity to the sanitary main or associated maintenance chambers. As a result, the watercourse is now at risk of exposing the sanitary infrastructure at six distinct locations within German Mills Settlers Park. Three alternative solutions have been proposed to protect sanitary infrastructure. As such, a Schedule B Municipal Class Environmental Assessment for Water and Wastewater Projects is being utilized as part of the planning and design process for this project.

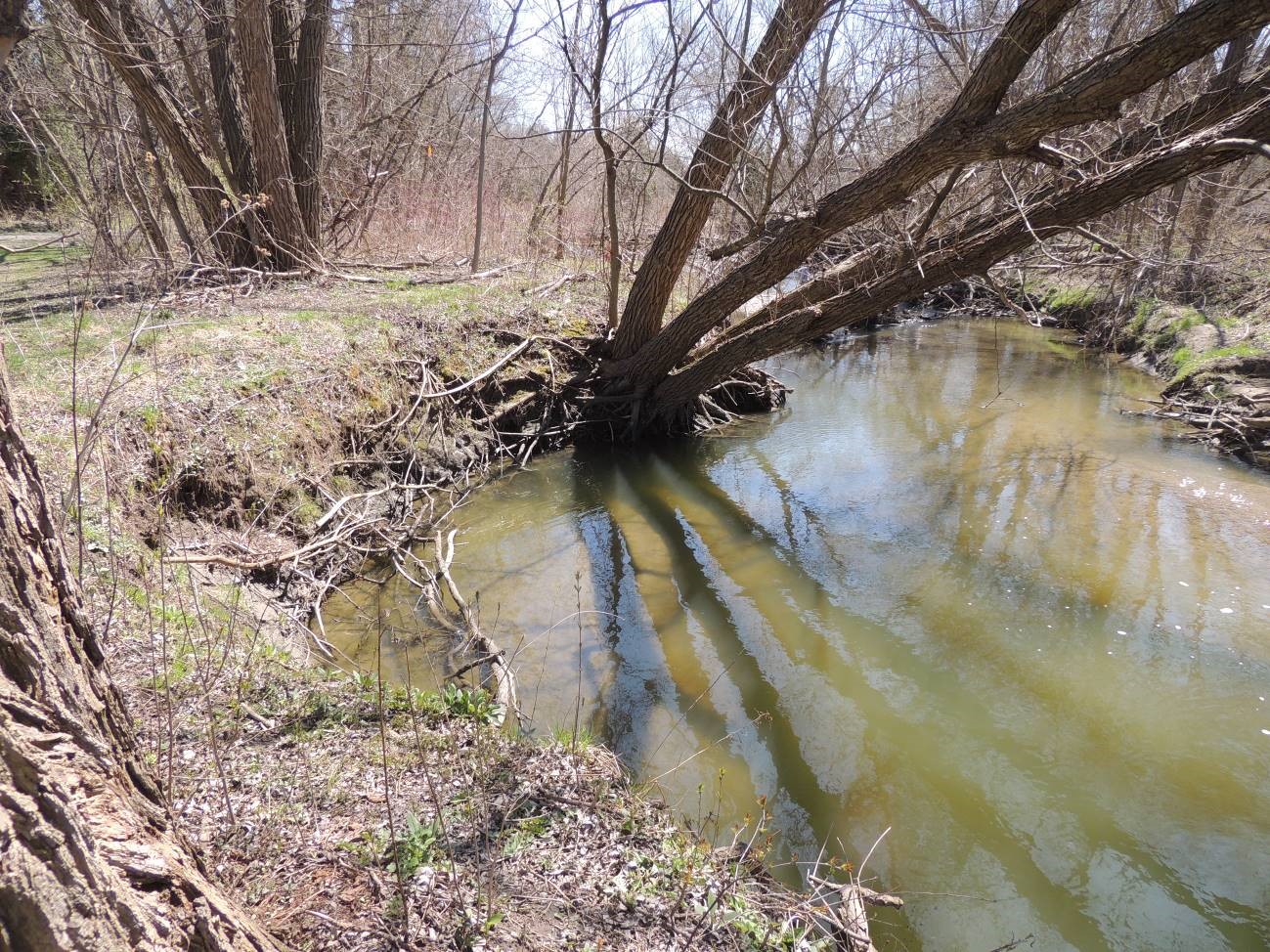

Existing conditions at P-060, facing downstream. TRCA, 2017.
Figure 2. Existing conditions at P-060, facing downstream. TRCA, 2017.

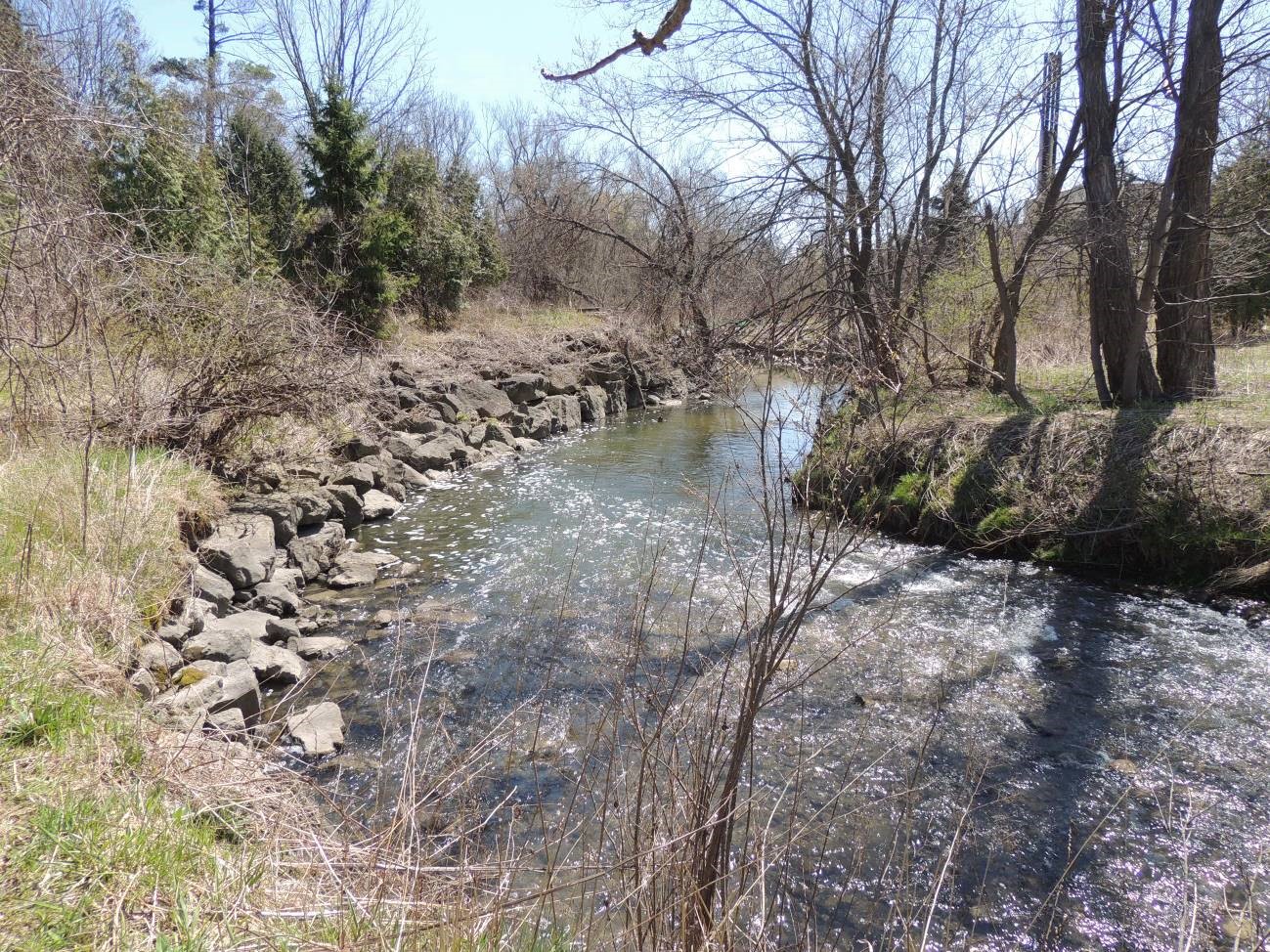

Existing conditions at P-068 facing downstream of pedestrian bridge. TRCA, 2017.
Figure 3. Existing conditions at P-068 facing downstream of pedestrian bridge. TRCA, 2017.
Schedule B Municipal Class Environmental Assessment for Water and Wastewater Projects

A Municipal Class Environmental Assessment is a study that identifies the potential positive and negative effects of municipal infrastructure projects, and the process includes an investigation and evaluation of the impacts on the natural, social and technical environment. A Schedule B Municipal Class Environmental Assessment includes public and stakeholder consultation, evaluation of design alternatives, and identification of measures to mitigate any adverse impacts. The Schedule B Municipal Class Environmental Assessment Process is divided into the following three phases of the Class EA process:

Phase 1 – Identify the problem and/or opportunity
Phase 2 – Identify and evaluate alternative solutions
Phase 5* – Implementation

*Note Phases 3 and 4 are only conducted by a Schedule C or greater Municipal Class Environmental Assessment.

In 2018, TRCA commenced Phase 1 of the Schedule B Municipal Class Environmental Assessment for Water and Wastewater Projects in accordance with the Environmental Assessment Act. A Notice of Intent initiating the project was published in the Markham Economist & Sun on April 26, 2018. Following initiation of the project, a Public Information Centre meeting was held on Tuesday, May 29th, 2018 in which interested community members attended and provided input on the planning and design process, including commenting on the proposed alternative solutions (Phase 2 – Identify and evaluate alternative solutions).

Upon identifying the preferred solution, TRCA completed an environmental analysis and worked with stakeholders to further inform the design process. As part of this process, TRCA finalized a Schedule B Municipal Class Environmental Assessment Project File to officially document project milestones and to serve as an opportunity for the public and stakeholders to provide further comment.  On May 23, 2019, a Notice of Completion was published in the Markham Economist & Sun to invite interested community members and regulatory agencies to review and comment on the Project File.

Individuals have the opportunity to submit written comments for a period of thirty (30) days from the publication of the Notice of Completion. Hard copies of the Project File are also available for review at TRCA’s Head Office (101 Exchange Avenue, Vaughan, ON) and the Thornhill Community Centre Library (7755 Bayview Avenue, Thornhill, ON) for the specified review period.

As described in the Project File, the preferred alternative is Concept 3: Channel Realignment with a Pedestrian Bridge Extension. This concept proposes to realign the watercourse to the historical channel alignment and install bank treatments to provide sanitary and municipal infrastructure protection. Concept 3 also proposes to extend and realign the pedestrian bridge at the downstream limits of the project area. Please refer to the Project File document linked below for further details.

Written comments on the Project File must be received by June 25, 2019 and can be sent to:

Phil Wolfraim, Project Manager
Erosion Risk Management, Engineering Projects
Restoration and Infrastructure Division
Toronto and Region Conservation Authority
101 Exchange Avenue, Vaughan, ON L4K 5R6
phil.wolfraim@trca.ca

Scope of Work

Next steps include:

      • 30 day review period of the Project File
      • Development of detailed designs based on the preferred alternative solution
      • Obtain all necessary permits and approvals to proceed to construction
      • Construction tentatively scheduled for summer 2020, pending available budget and receipt of permits and approvals
Construction Information

Construction information showing work area, access areas, tentative schedule and construction highlights will be updated once the project commences in summer 2020.

Public Consultation

To view project notice and consultation material, please click on the links below:
Notice of Intent
Public Information Centre Meeting Presentation
German Mills Settlers Park Sanitary Infrastructure Protection Concepts & Evaluation
Public Consultation Comment Form
Site I-152 Emergency Interim Works – Notice of Construction
Notice of Completion
Project File with Appendices

Project Updates

May 27, 2019

The Project File has been made available to the public for review; individuals have the opportunity to submit written comments for a period of 30 days from the publication of the Notice of Completion. Upon receipt, all received comments are considered public records and will become a part of the Project File. TRCA will provide a further update following completion of this 30 day review period.

October 17, 2018

Please be advised, the emergency interim sanitary protection works for I-152 were completed the week of October 15, 2018. As a follow up to the Municipal Class Environmental Assessment process, TRCA is continuing to draft the Project File of which will be made available to the public for review and comment in spring 2019.
